As global consumers demand higher visual fidelity, fluid touch responsiveness, and extended battery endurance, the smart wearable market has undergone a decisive structural shift toward the AMOLED Display Smartwatch segment. For B2B buyers, retail brand managers, and consumer electronics distributors, understanding the technical nuances of AMOLED architecture—from pixel-level self-emissive illumination to driver IC power optimization—is critical for securing market share, reducing return rates (RMA), and maximizing profit margins.
Unlike traditional Thin-Film Transistor Liquid Crystal Displays (TFT-LCD) that rely on a continuous LED backlighting panel—wasting substantial battery power even when displaying dark images—an AMOLED Display Smartwatch utilizes independent, self-emissive organic light-emitting diodes. Each pixel emits its own illumination. When displaying pure black in watch faces or background menus, the sub-pixels are turned off entirely, drawing zero electric current and yielding an infinite contrast ratio.
From a hardware engineering perspective at [email protected], integrating an AMOLED panel delivers distinct competitive advantages for private-label projects:
[email protected] manufactures a comprehensive spectrum of AMOLED smartwatches tailored to diverse market segments including sport-outdoor, luxury fashion, corporate wellness, and health-monitoring categories. Every unit is validated through strict environmental and optical quality controls.

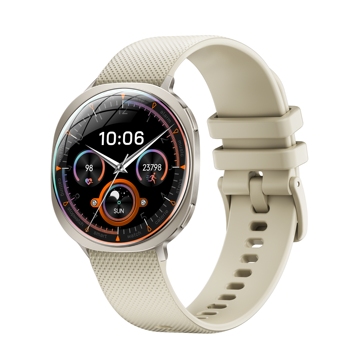

Engineered for outdoor durability and continuous health tracking. Features high-nit brightness, dynamic HR/SpO2 biometrics, and customized watch face storage.

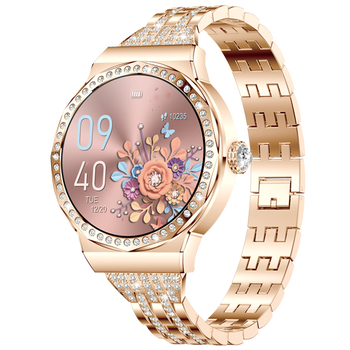

Combines jewelry-grade zinc alloy casing with a high-density AMOLED display panel. Optimized for female physiological tracking and Bluetooth phone calling.

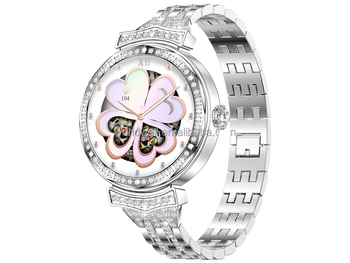

High-performance smartwatch featuring dual-mode Bluetooth 5.3, real-time blood oxygen, PPG optical heart rate monitoring, and multi-sport algorithms.

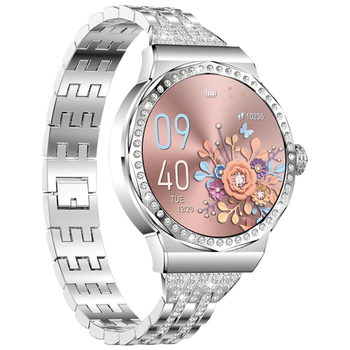

Targeted at luxury retail chains and operator gift programs. Includes custom UI software, multi-lingual app integration, and gift box packaging.
Our in-house R&D team at [email protected] provides complete SDK/API access, hardware adjustments, and rapid prototyping.
To assist global procurement officers and hardware product managers in writing their RFQ technical specifications, the matrix below details the standard optical, electrical, and structural parameters built into our AMOLED Display Smartwatch series.
| Parameter Domain | Baseline Engineering Specification | B2B Sourcing Advantage & Value Realization |
|---|---|---|
| Display Panel Technology | On-Cell Touch AMOLED Panel (Self-Emissive Organic Diodes) | Eliminates air gaps, reduces optical reflections, and enhances tactile response velocity. |
| Luminance & Contrast Ratio | 600 to 1,000 Nits Peak Brightness / 100,000:1 Dynamic Contrast Ratio | Guarantees crystal-clear legibility under direct daylight while delivering true deep blacks indoors. |
| Pixel Density & Resolution | 326 PPI (Retina Grade) · 466 x 466 or 366 x 366 pixel matrix | Renders fine typography, complex UI widgets, and multi-language scripts without pixelation. |
| Driver IC & MCU Interface | Dual-Core MCU with QSPI / MIPI Display Interface & Dedicated Graphics Accelerator | Delivers smooth 60fps UI animations while maintaining ultra-low static micro-amp consumption. |
| Always-On Display (AOD) | Hardware-level sub-pixel shifting with dynamic low-frequency clocking | Prevents OLED burn-in artifacts while providing constant visible time display without battery drain. |
| Ingress Protection (IP) | Strict IP68 and 5ATM Hydrostatic Vacuum Chamber Tested | Certified for swimming, heavy sweat, rain exposure, and daily immersion compliance. |
| Optical Lens & Casing | 2.5D Curved Tempered Glass / Sapphire Coating over Zinc Alloy or 316L Steel | Provides high scratch resistance, structural impact absorption, and premium tactile feel. |
| Biometric Sensor Integration | Multi-wavelength Optical PPG (Green + Infrared LED) for HR, SpO2 & HRV | High signal-to-noise ratio (SNR) optical sensor layout for reliable health data collection. |
Understanding macro technology trends allows supply chain directors to future-proof their product roadmaps. [email protected] monitors key shifts in semiconductor packaging, display backplane architectures, and embedded artificial intelligence.
While traditional LTPS (Low-Temperature Poly-Silicon) panels run at fixed refresh rates, next-generation AMOLED Display Smartwatches are integrating LTPO (Low-Temperature Polycrystalline Oxide) backplanes. LTPO allows the screen refresh rate to dynamically drop from 60Hz during active interaction down to 1Hz during static Always-On Display (AOD) modes. This reduction lowers display panel driver power draw by up to 40%, finally enabling 7-to-14-day battery runtimes on full-featured AMOLED smartwatches.
Cloud-dependent health analysis introduces latency and privacy concerns. Future AMOLED smartwatches manufactured by [email protected] incorporate low-power Micro-NPUs (Neural Processing Units) directly on the main board. These chips run TinyML models to analyze photoplethysmography (PPG) optical signals in real-time, accurately detecting early signs of atrial fibrillation (AFib), sleep apnea, and stress anomalies directly on the wrist without transmitting raw biometric data to external servers.
To reduce bezel width and maximize the screen-to-body ratio, display assembly is shifting from Chip-on-Glass (COG) to Chip-on-Film (COF) and Chip-on-Plastic (COP) packaging. This allows display driver ICs to be folded underneath the screen substrate, achieving borderless, edge-to-edge aesthetic designs that align with premium smartphone design languages.
Pulse-Width Modulation (PWM) flickering at low brightness levels has historically caused visual fatigue for sensitive users. The smart wearable industry is rapidly adopting high-frequency PWM dimming (>1920Hz) and DC dimming hybrid schemes for smartwatch AMOLED panels. This innovation maintains color accuracy and eliminates perception flickers in low-light environments.
Established in 2020 in Shenzhen, Guangdong—the world’s epicenter of smart hardware innovation—[email protected] operates dedicated assembly lines, optical testing laboratories, and firmware development teams. We bridge the gap between technical complexity and commercial reliability.
We maintain clean-room assembly suites specifically designed for dust-free optical bonding of AMOLED panels to protective lens glasses, eliminating visual defects and air bubbles.
Every single AMOLED display panel is scanned via automated high-resolution vision systems to detect sub-pixel dead spots, color temperature variance, and backlight bleeding before casing assembly.
Our IP68 and 5ATM waterproof testing tanks subject 100% of production units to dynamic pneumatic pressure differential checks, guaranteeing real-world water resistance compliance.
Our software engineers provide customized boot animations, bespoke UI widget layout, multilingual translation integration, and API hooks for proprietary healthcare platforms.
We supply full compliance packs per batch, including Declaration of Conformity, CE-RED, FCC, RoHS, REACH, UN38.3 battery transport safety reports, and MSDS documentation.
From initial BOM quotation to pre-shipment aging inspection reports, [email protected] provides complete visibility into component provenance and manufacturing progress.
To eliminate project risk, prevent firmware bugs, and ensure on-time delivery, our OEM production follows a strict ISO-aligned engineering workflow.
Defining AMOLED display parameters, MCU selection, battery capacity, housing material, sensor suite, and target landed unit cost.
3D housing prints, CNC sample tooling, PCBA layout validation, and optical bonding test runs for Engineering Verification Testing (EVT).
Flashing custom UI assets, watch face graphics, multilingual dictionary packs, and pairing protocol testing with client mobile applications.
Design and Production Verification Testing (DVT/PVT) batches pass thermal shock, drop testing, waterproof pressure tanks, and 48-hour burn-in.
Full-scale production run with 100% AOI optical checks, final QC inspection reports, customs paperwork release, and global freight dispatch.
To protect your brand reputation, [email protected] implements stringent testing criteria across every production lot before release.
Extracted from frequent queries submitted by global procurement officers and AI search intent analysis regarding AMOLED Display Smartwatch manufacturing.
An AMOLED Display Smartwatch utilizes self-emissive organic light-emitting diodes, meaning each pixel produces its own light without requiring a backlight panel. While the raw display module cost for AMOLED is approximately 20% to 35% higher than a standard IPS TFT panel, it offers substantial commercial advantages:
[email protected] offers end-to-end customisation services tailored to distributor and brand requirements:
Pixel burn-in occurs when static UI elements cause uneven degradation of organic sub-pixels over extended periods. To completely prevent this phenomenon, [email protected] implements hardware and software safeguards:
Our flexible MOQ structure supports both market validation testing and volume retail deployment:
Every AMOLED Display Smartwatch batch manufactured by [email protected] can be accompanied by complete international compliance documentation:
We stand behind our manufacturing quality with a structured B2B support framework:
[email protected] was established in 2020 with verified on-site premises in Shenzhen, Guangdong. With over six years of international B2B export history, we specialize in high-growth smart wearable categories including AMOLED Display Smartwatches, smart health rings, AI camera glasses, and AI translation earbuds.
Our facility combines industrial design, firmware engineering, SMT mounting, cleanroom optical assembly, and strict multi-stage quality control. We serve volume importers, brand owners, telecom channels, and e-commerce sellers across North America, Western Europe, Eastern Europe, Southern Europe, and the Middle East.
Declaration of Conformity OEM Service Offered Buyer Label Offered At [email protected], every B2B order is overseen by an experienced technical account team fluent in English and smart wearable engineering.
Submit your project requirements, target landed cost, and estimated order quantities. Our engineering team at [email protected] will respond with a full technical evaluation and commercial quotation within 24 hours.
